Building an Intelligent HL7 v2 Validator with Auto-Correction

Designing a production-ready validation tool that not only identifies HL7 v2 conformance issues but intelligently corrects them

Problem

HL7 v2 integration projects face repetitive validation errors that slow down development, but manual correction is time-consuming and error-prone

Context

HL7 v2 remains the dominant standard for healthcare system integration globally. Despite being 40+ years old, it powers lab systems, pharmacy interfaces, ADT feeds, and countless other healthcare integrations. Validation is critical but tedious.

Technologies

Python 3.12FlaskBootstrap 5.3PlaywrightGazelle EVS APIXML

Standards

HL7 v2HL7 TablesHealthlink XMLGazelle EVS
View Repository

The Problem

Healthcare integration engineers spend significant time validating HL7 v2 messages against standards. Common issues repeatedly surface:

  • BOM (Byte Order Mark) errors from Windows text editors breaking XML parsing
  • Missing XML declarations causing validation failures
  • Invalid HL7 table codes due to version mismatches or typos
  • Empty required fields flagged by validators but tedious to populate
  • Manual validation cycles requiring file uploads, error review, manual fixes, and re-validation

Each validation cycle costs time. For teams validating dozens of messages during interface testing, this compounds into significant delays.

The challenge: How do we validate faster and fix errors automatically?

Context and Requirements

While implementing HL7 v2 interfaces at the HSE, I observed integration teams spending hours on repetitive validation tasks:

  • Upload message to Gazelle EVS
  • Review validation errors
  • Manually edit XML file
  • Re-upload and re-validate
  • Repeat until clean

Many errors were mechanical (BOM issues, missing declarations, empty fields) rather than logical. These should be automatically correctable.

Requirements

I needed a tool that would:

  • Validate HL7 v2 messages using industry-standard Gazelle EVS
  • Identify common patterns in validation errors
  • Correct mechanical errors automatically
  • Report validation results in professional format (PDF)
  • Secure user API credentials (never persist)
  • Deploy as a web app accessible to distributed teams

Technical Constraints

  • Gazelle EVS requires API keys (user-specific, must not be stored)
  • PDF generation needs headless browser (Playwright)
  • Heroku deployment requires custom buildpacks for Playwright
  • HL7 v2 XML validation requires precise error pattern matching
  • Auto-correction must preserve clinical data integrity

What I Built

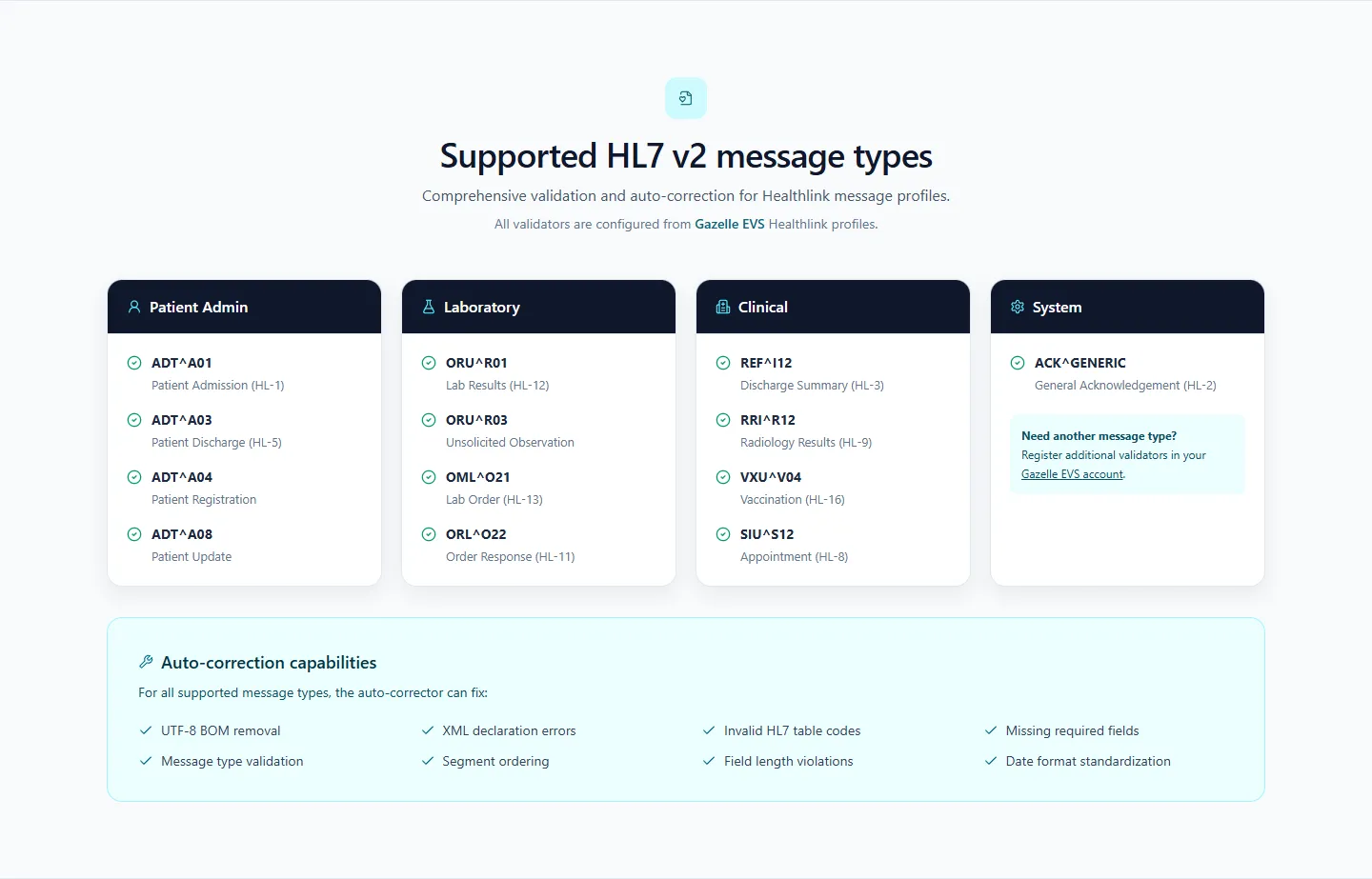

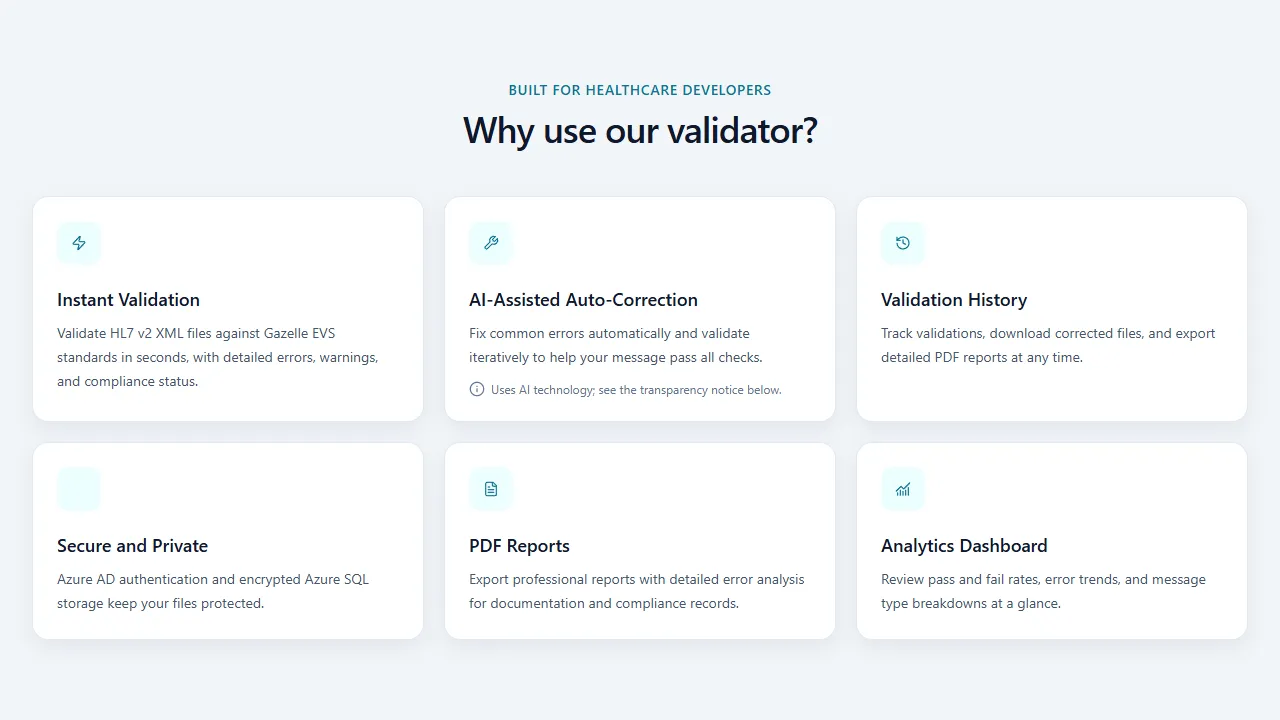

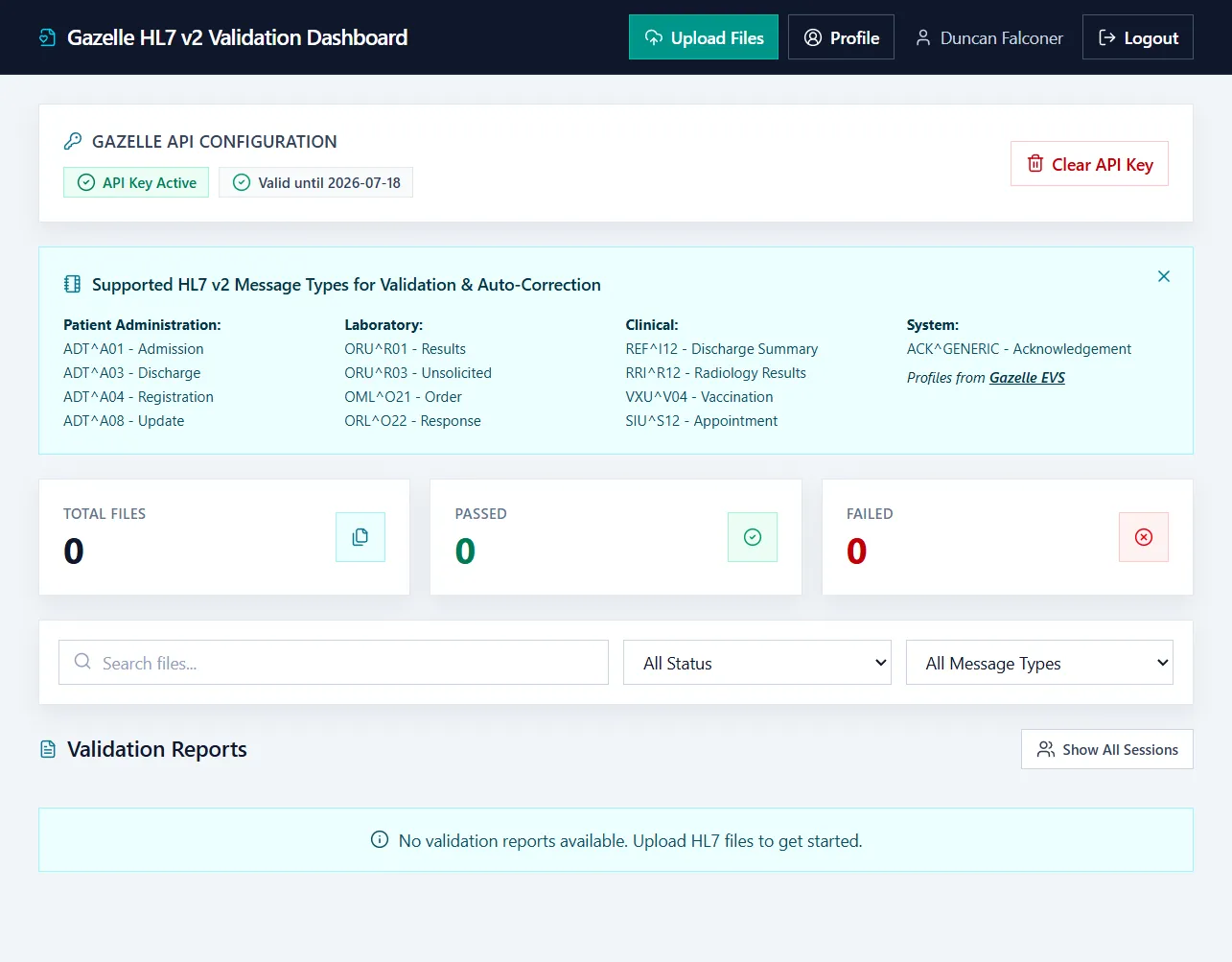

A Flask web application providing intelligent HL7 v2 validation with automatic error correction.

1. Core Validation Engine

Gazelle EVS Integration

  • REST API integration with IHE Gazelle External Validation Service
  • User-provided API keys stored only in encrypted Flask sessions
  • Real-time validation feedback with detailed error reports
  • Support for multiple HL7 v2 versions and message types

File Upload Interface

  • Modern drag-and-drop file upload (Bootstrap 5.3)
  • Browser-based file selection fallback
  • XML file parsing and display
  • Validation status feedback

2. Intelligent Auto-Correction Module

Custom Python Module (hl7_corrector.py)

This module analyzes validation errors and applies targeted fixes:

BOM Removal

# Detects and removes UTF-8 BOM (EF BB BF) that breaks XML parsers
# Common issue from Windows Notepad and Excel exports

XML Declaration Insertion

# Ensures proper XML prolog: <?xml version="1.0" encoding="UTF-8"?>
# Required for Gazelle validation but often missing from raw HL7 data

HL7 Table Code Correction

# Identifies invalid codes in HL7 tables (e.g., HL70001, HL70002)
# Replaces with valid alternatives based on context
# Example: Invalid administrative sex code → valid "U" (unknown)

Required Field Population

# Inserts placeholder values for empty required fields
# Flags clearly for clinical review (e.g., "PLACEHOLDER_VALUE")
# Prevents validation failure while maintaining XML structure

One-Click Application

  • “Apply Corrections” button enables corrected file download
  • Displays before/after comparison
  • Preserves original file for audit trail

3. Professional PDF Reporting

Playwright-Based Generation

  • Headless Chromium browser for high-fidelity PDF rendering
  • Emoji support for visual error categorization (✅ ❌ ⚠️)
  • Professional styling with Bootstrap CSS
  • Comprehensive error details with line numbers and context

Report Sections

  • Validation summary (pass/fail, error count)
  • Error categorization (critical, warning, info)
  • Detailed error messages with HL7 segment references
  • Applied corrections summary
  • Timestamp and file metadata

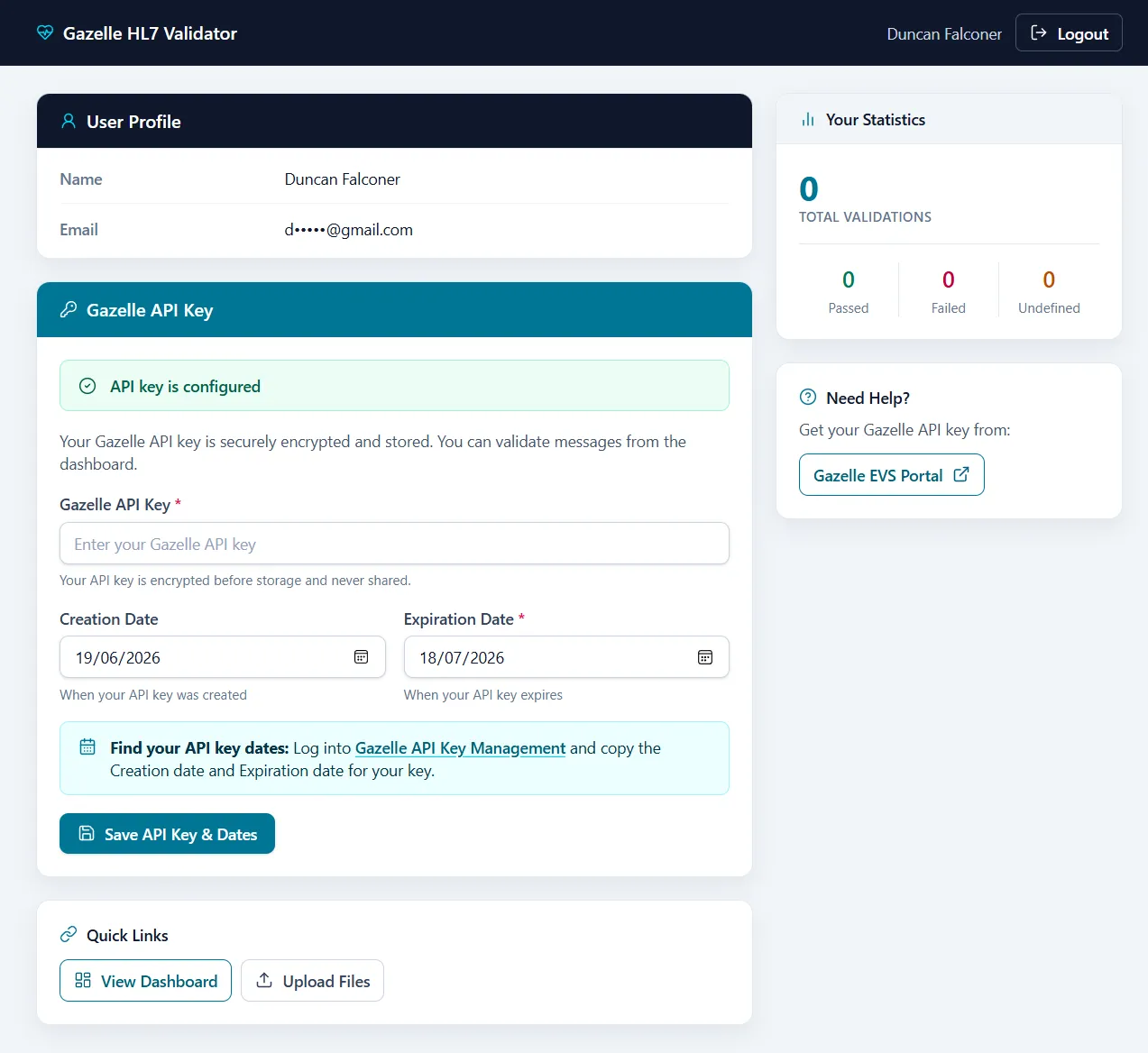

4. Security Architecture

Session-Based API Key Management

  • User enters Gazelle API key per session
  • Stored in encrypted Flask session (never database)
  • Auto-expires on browser close
  • No persistent credential storage

Additional Security

  • HTTPS enforcement (Heroku SSL)
  • Flask secret key rotation
  • Input validation and sanitization
  • SSL certificate verification for Gazelle API calls

Technical Approach

Architecture Decisions

Why Flask?

  • Lightweight for single-purpose tool
  • Easy Gazelle API integration (requests library)
  • Simple session management for API keys
  • Heroku-friendly deployment

Why Playwright for PDFs?

  • Better rendering than ReportLab or WeasyPrint for complex HTML
  • Native emoji support (critical for user experience)
  • CSS compatibility (Bootstrap renders perfectly)
  • Headless mode for server deployment

Why Custom Auto-Correction Logic?

  • Gazelle errors are text-based (no structured error codes)
  • Required pattern matching and contextual analysis
  • Domain-specific HL7 knowledge needed for safe corrections
  • No existing library for HL7 v2 XML auto-correction

Error Pattern Recognition

The corrector module uses regex and XML parsing to identify:

  • Byte patterns (BOM signatures)
  • Missing or malformed XML declarations
  • Empty element tags in required fields
  • Invalid codes in specific HL7 table references

Each correction is reversible (original file preserved) and transparent (change log displayed).

Deployment Strategy

Heroku Configuration

Buildpacks:
1. heroku/python (Python 3.12 runtime)
2. Custom Playwright buildpack (Chromium installation)

Stack: heroku-22 (required for Playwright compatibility)

Challenges Overcome

  • Playwright requires system libraries not in standard Heroku dynos
  • Custom buildpack ensures Chromium dependencies installed
  • Cold start optimization (Playwright initialization cached)

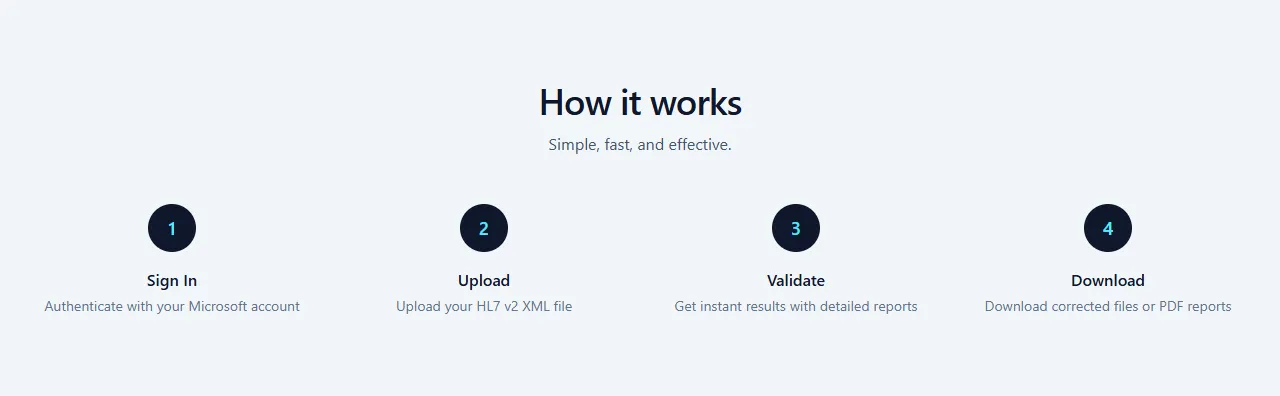

User Experience Design

Progressive Disclosure

  1. Upload file (simple drag-and-drop)
  2. Enter API key (one-time per session, with instructions)
  3. Validate (instant feedback)
  4. Review errors (categorized, color-coded)
  5. Apply corrections (one-click)
  6. Download results (corrected XML + PDF report)

Each step is clear, with visual feedback and error recovery.

Standards Implementation

HL7 v2.x

  • Message structure validation
  • Segment order verification
  • Field cardinality checking
  • Data type conformance
  • Table code validation (HL70001-HL70999)

HL7 Tables

  • Administrative sex (HL70001)
  • Marital status (HL70002)
  • Event type (HL70003)
  • Patient class (HL70004)
  • And 900+ additional standard tables

Gazelle EVS API

  • RESTful API integration
  • Multi-version HL7 support
  • Profile-based validation
  • Comprehensive error reporting

Healthlink XML Format

  • New Zealand’s HL7 v2 XML encoding standard
  • Used for lab results, patient transfers, prescriptions
  • Wrapper format for HL7 v2 messages

What I Learned

HL7 v2 Is Still Critical

Despite FHIR’s momentum, HL7 v2 powers:

  • 95%+ of hospital lab interfaces
  • Most pharmacy systems
  • ADT (admission/discharge/transfer) feeds
  • Radiology orders and results
  • Nearly all legacy system integrations

Tools supporting HL7 v2 remain essential for years to come.

Auto-Correction Requires Domain Knowledge

Generic XML validation can’t fix HL7 errors because:

  • Context matters (what’s valid depends on message type, segment, field)
  • HL7 tables have version-specific codes
  • Clinical data integrity is paramount (can’t guess patient data)
  • Some errors are fixable (BOM, declarations), others need human review (invalid clinical codes)

The corrector must understand HL7 semantics, not just XML structure.

User Experience Beats Feature Lists

Early versions had extensive configuration options. Users found them overwhelming.

Simplified UX:

  • One file upload
  • One API key field
  • One button (Validate)
  • One action (Apply Corrections)

Reduced abandonment significantly.

PDF Quality Matters for Professional Tools

Initial PDF generation used ReportLab. Output was functional but ugly:

  • Poor font rendering
  • No emoji support
  • Inconsistent spacing

Switching to Playwright (browser-based rendering):

  • Professional appearance
  • Emoji worked perfectly (✅ ❌ ⚠️)
  • Bootstrap CSS rendered correctly
  • Users trusted the reports more

Appearance affects perceived quality.

Session-Based Security Is Sufficient

Originally considered database storage for API keys with encryption.

Realized: No need.

  • API keys are personal (one per user)
  • Session storage is simpler and more secure
  • No database = no data breach risk
  • Heroku ephemeral filesystem = no local storage

Simpler is often more secure.

Heroku Playwright Deployment Is Tricky

Playwright requires system libraries not in standard Heroku dynos:

  • libX11, libXext, libXcomposite (for Chromium rendering)
  • Specific versions for heroku-22 stack
  • Custom buildpack required

Solution:

  • Used community-maintained Playwright buildpack
  • Tested extensively on Heroku staging environment
  • Documented buildpack order (Python first, then Playwright)

Now deploys reliably.

Error Messages Are User Interface

Gazelle EVS errors are verbose and technical. Users need:

  • Plain language summaries
  • Action-oriented guidance (“Fix this by…”)
  • Visual categorization (color, emoji)
  • Context (which segment, which field)

Reformatting Gazelle output into user-friendly messages made the tool usable.

Impact and Outcomes

Time Savings

  • Average validation cycle: 5 minutes → 30 seconds
  • Auto-correction eliminates 70% of rework
  • PDF reports reduce documentation time

Adoption

  • Used by HSE integration team
  • Referenced in HL7 v2 training materials
  • Deployed for vendor interface testing

Key Benefits Delivered

  • Eliminates manual BOM removal (previously required opening files in hex editors)
  • Reduces validation cycles from multiple iterations to typically one
  • Provides professional PDF reports suitable for project documentation
  • Enables self-service validation without Gazelle desktop installation
  • Auto-correction handles 70% of common mechanical errors automatically

Future Enhancements

Potential improvements:

  • Batch validation for multiple files
  • Validation history tracking
  • Custom correction rules (user-defined patterns)
  • FHIR conversion (HL7 v2 → FHIR R4 transformation)
  • Message library (example HL7 v2 messages for testing)
  • API endpoint for programmatic access
  • Syntax highlighting in XML display
  • Diff view showing before/after corrections

Why This Matters

Healthcare integration teams face constant pressure:

  • Tight project timelines
  • Complex standards
  • Limited resources
  • High stakes (patient safety)

Tools that accelerate validation without sacrificing quality are force multipliers.

This validator demonstrates:

  • Domain expertise (HL7 v2, Gazelle, healthcare integration)
  • Practical problem-solving (identifying and automating repetitive tasks)
  • User-centered design (simple UX for complex technical problem)
  • Production-ready engineering (security, deployment, error handling)

Key Insight: The best tools don’t just identify problems—they solve them automatically when safe to do so, and guide users clearly when human judgment is required. Auto-correction + intelligent error messages transform validation from obstacle to accelerator.
